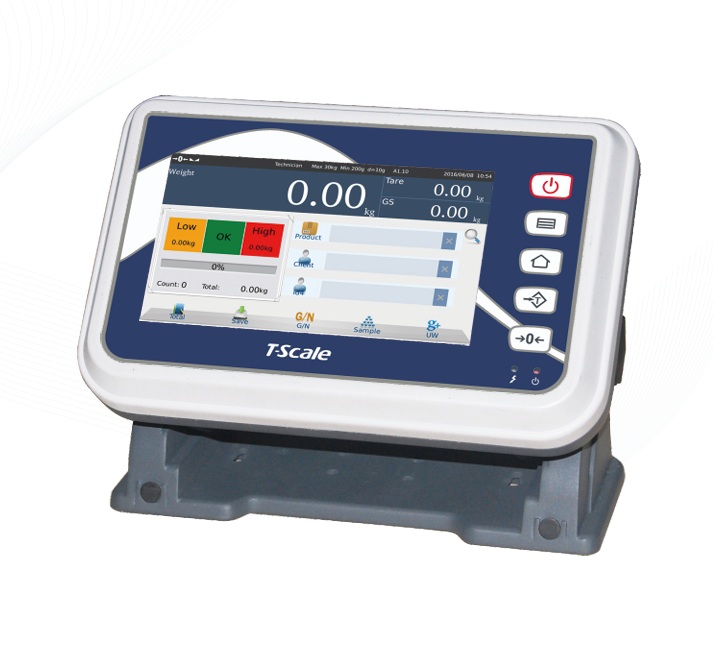

T7 Series Intelligent Indicator

Key Features:

✅ Standard TOS II Embedded Operating System (1.2GHz) (LINUX)
✅ Checking Weighing and Counting application
✅ PLU product management, 9999 each ID storage capacity, up to 8 ID selectable
✅ Multi-weighing units selection
✅ Report management: Daily, Monthly, Product, Client report, etc.
✅ Print formats and customized print formats selection
✅ TTC Back Office Software Management allows to make product update and customized report management
✅ Standard 2*RS-232; 2*USB2.0; 1*RJ45
✅ Optional Wi-Fi application

📊 Technical Data

Specification	Details
Display	7″ colour touch screen operator display (800×480)
H/V	16:9
CPU	A9 single core
Memory	RAM 1GB; Flash 1GB
Touch Screen	Resistive touch screen
Keyboard	5 keys (Mechanical Switch)
Housing	ABS Plastic
Max. Divisions	3,000e; 30,000d
Load Cell Excitation Voltage	5V/150mA
ADC Update	≤ 1/10 second
Operate Temp	0°C ~ +40°C
Power	In put: AC100~240V, 50/60HZ Out put: DC12V/2500mA 6V/4Ah rechargeable battery as standard

NS7 Series Intelligent Indicator

Key Features:

✅ Standard TOS II Embedded Operating System (1.2GHz) (LINUX)
✅ CPU: A9 single core; Memory: RAM 1GB; Flash 8GB
✅ Checking Weighing and Counting application
✅ PLU product management, 9999 each ID storage capacity, up to 12 ID selectable
✅ Multi-weighing units selection
✅ Report management: Daily, Monthly, Product, Client report, etc.
✅ Print formats and customized print formats selection
✅ Multi-language selection
✅ TTC Back Office Software Management allows product update and custom report management
✅ Standard: 1*RS-232; 1*USB2.0; 1*RJ45
✅ Optional Wi-Fi application
✅ OIML approval form Delta (approval no. DK0199.550)

📊 Technical Data

Specification	Details
Display	7″ colour touch screen operator display (800×480)
H/V	16:9
Touch Screen	Resistive touch screen
Keyboard	5 keys (Mechanical Switch)
Housing	SST
Max. Divisions	3,000e; 30,000d
Load Cell Excitation Voltage	5V/150mA
ADC Update	≤ 1/10 second
Operate Temp	0°C ~ +40°C
Power	In put: AC100~240V, 50/60HZ Out put: DC12V/2500mA 6V/4Ah rechargeable battery as standard

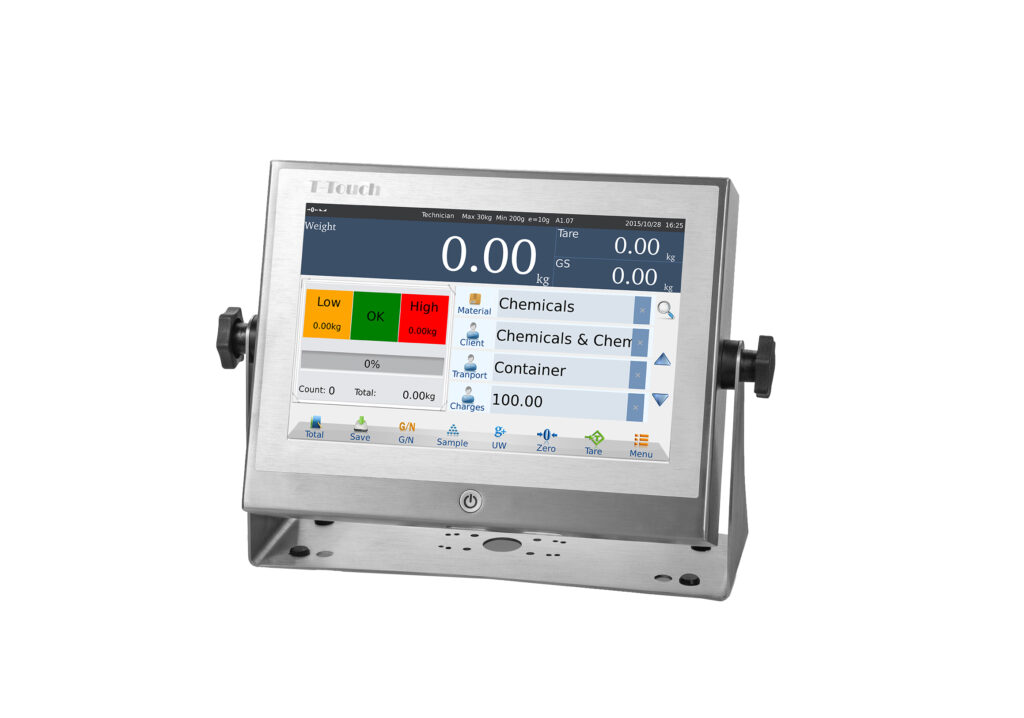

S10 Series Intelligent Indicator

Key Features:

✅ Standard TOS II Embedded Operating System (1.2GHz) (LINUX)
✅ Checking Weighing and Check Counting application
✅ PLU product management, 9999 each ID storage capacity, up to 12 ID selectable
✅ Multi-weighing units selection
✅ Report management: Daily, Monthly, Product, Client report, etc
✅ Label & Ticket Formats Customizable
✅ TTC Back Office Software Management: product updates, customized print formats, report management, import & export, etc.
✅ Standard I/O Ports: 1*RS–232; 1*RS485/422/232; 2*USB2.0; 1*RJ45; I/O(5*in,5*out)
✅ 5*Input/Output port supporting to control relay devices
✅ Optional Wi-Fi, Second Platform, Tower Light Connectivity

📊 Technical Data

Specification	Details
Display	10.1″ colour touch screen operator display (1280×800)
H/V	16:9
CPU	A9 dual core
Memory	1GB RAM & 8GB Flash
Touch Screen	Resistive touch screen
Keyboard	One Mechanical Key
Housing	SST
Max. Divisions	3,000e; 30,000d
Load Cell Excitation Voltage	5V/150mA
ADC Update	≤ 1/10 second
Operate Temp	0°C ~ +40°C
Power	Input: AC100~240V, 50/60Hz

PC 10 Series Commercial Scales

Key Features:

✅ TOS II embedded Operating System (1.2GHz)
✅ Applications: Check weighing; Piece counting
✅ Humanne touch screen
✅ PLU product management
✅ OIML approval form Delta (approval no.DK0199.516)
✅ Sleep function
✅ Detailed weighing records
✅ Visible print format
✅ 2 × USB2.0 (Type A), 2 × RS-232, 1 × RJ45
✅ Built-in label printer

📊 Technical Data

Specification	Details
Display	10″ TFT colour touch screen operator display
Capacities	6kg~30kg
Pan Size	280x385mm
Housing	ABS plastic
Max. Divisions	3,000e; 2 × 3,000e; 30,000d
ADC Update	≤ 1/10 second
Load Cell Excitation Voltage	5V/150mA
Operate Temp	0°C ~ +40°C
Power	Input: AC 100~240V, 50/60Hz Output: 24V/5000mA

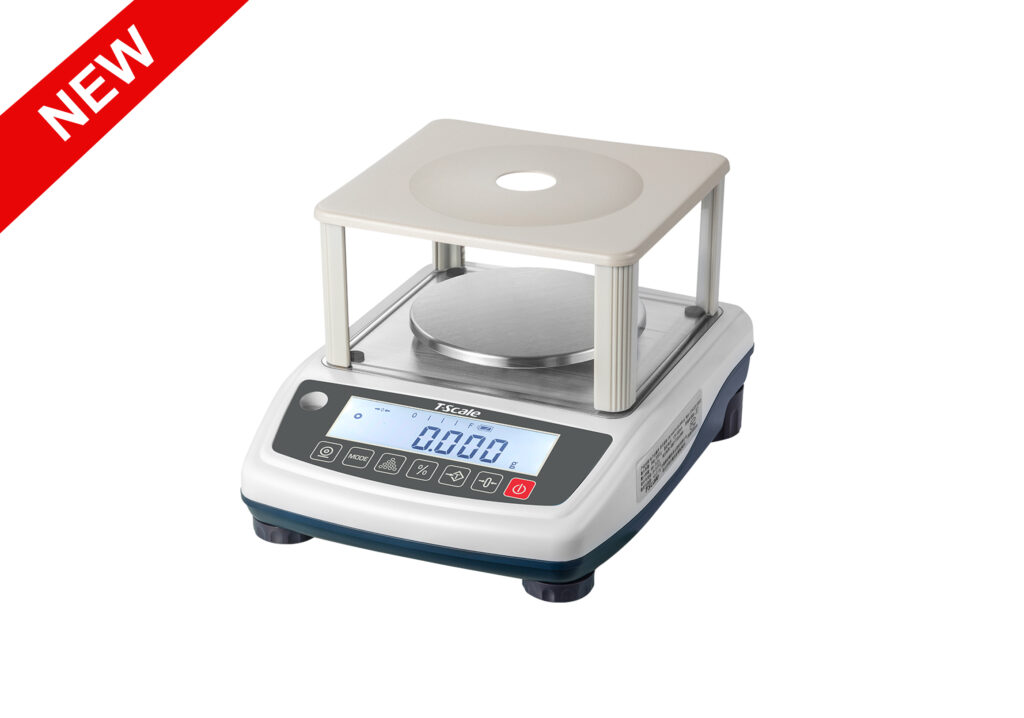

NHB Plus Precision Balance

Key Features:

✅ High resolution, upgrade up to 1/600,000
The NHB series combines the latest weighing chip with new developed software offering a competitive performance weighing, internal resolution is up to 4 million counts, external resolution is up to 600,000 divisions.
✅ Powerful Back Office Management Software
The management software can display the weight in real time, and can be used as a remote device to perform ZERO and TARE operation. It provides users to manage the PLU, user and customer information, etc. Transferring the weighing data from scales through the method of manual, automatic or time interval.
✅ Higher Cost Performance
We break the technical bottleneck in traditional analog load cell and offer the advantage of comprehensive linearity and temperature compensation, which provide users competitive performance at an economical price.
✅ Multiple Use For a Variety of Applications
NHB series offering high accuracy and repeatability for applications in laboratory, industrial and education settings.

📊 Technical Data

Item	Specification
Model	NHB-Plus II-300, 600, 1500, 3000, 6000 / NHB-Plus III-600, 1500, 3000, 6000
Capacity	300g ~ 6000g
Readability	1mg ~ 20mg
Max. Divisions	300,000d / 600,000d
Pan Size	Φ120mm ~ 140×150mm
Wind Shield	YES / NO
Power Supply	Input: 100~240VAC 50~60Hz, Output: DC 12V 500mA
Battery	6V 1.2Ah rechargeable battery
Display	16.5mm digit LCD display with white LED backlight
Interface	DB9 RS232 port
Housing	ABS plastic housing; Stainless steel pan
Keyboard	7 membrane keys
Units	g/ct/lb/oz/d/gn/ozt/dwt/mom/tl.t/tl.h/tij/t/bt/n
Applications	Basic Weighing, Parts Counting, Percent Weighing, Accumulation
Option	Bluetooth 5.0/USB 2.0 (type B)/Under hook
Net Weight	1.0kg ~ 1.5kg
Gross Weight	1.6kg ~ 2.1kg
Dimension (W×D×H)	255×200×83/153mm
Operating Conditions	Temperature: 5°C~35°C , Humidity: < 85% R.H.

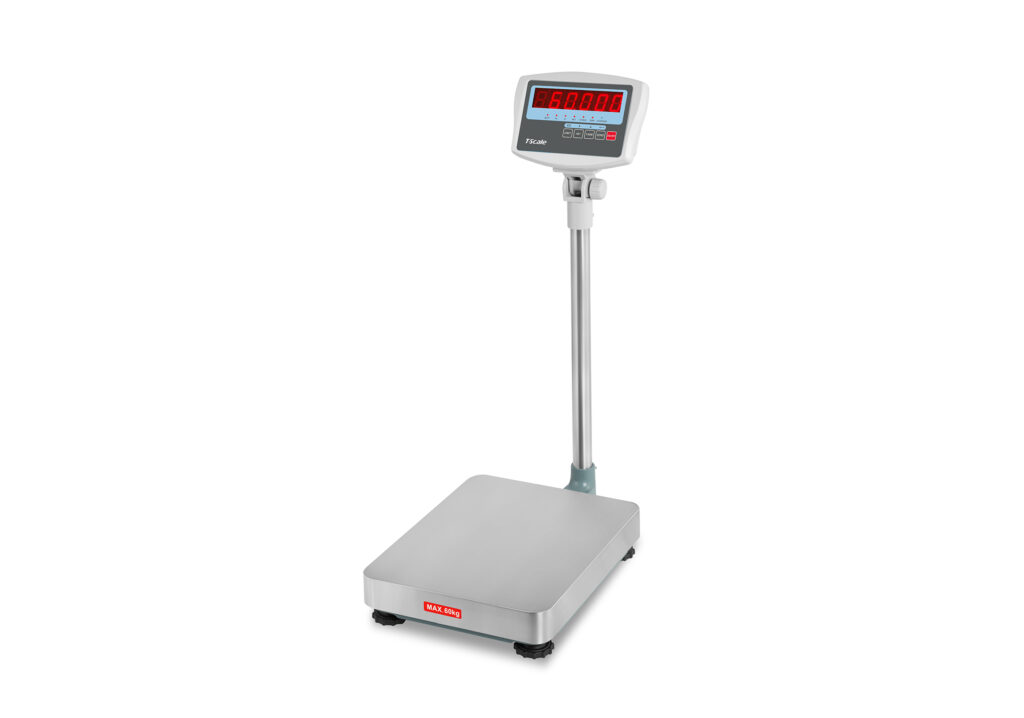

ELW LED Weighing Indicator

✅ Key Features:

✅ Programmable to meet your needs
✅ Application: Weighing units conversion, Accumulation, Auto power off
✅ OIML approval from Delta (approval no. DK0199.165)
✅ Rechargeable battery operation, up to 40 hours of continuous use
✅ Optional RS-232 interface can connect printer or computer

📊 Technical Data

Specification	Details
Display	1.2" LED display
Keyboard	5 keys (Mechanical switch)
Housing	ABS plastic
Max. Divisions	10,000d
Load Cell Excitation Voltage	5V/150mA
ADC Update	≤ 1/10 second
Operate Temp	-10°C ~ +40°C
Power	AC adapter (12V/500mA), rechargeable battery (6V/4Ah)
Gross Weight	2.5 kg

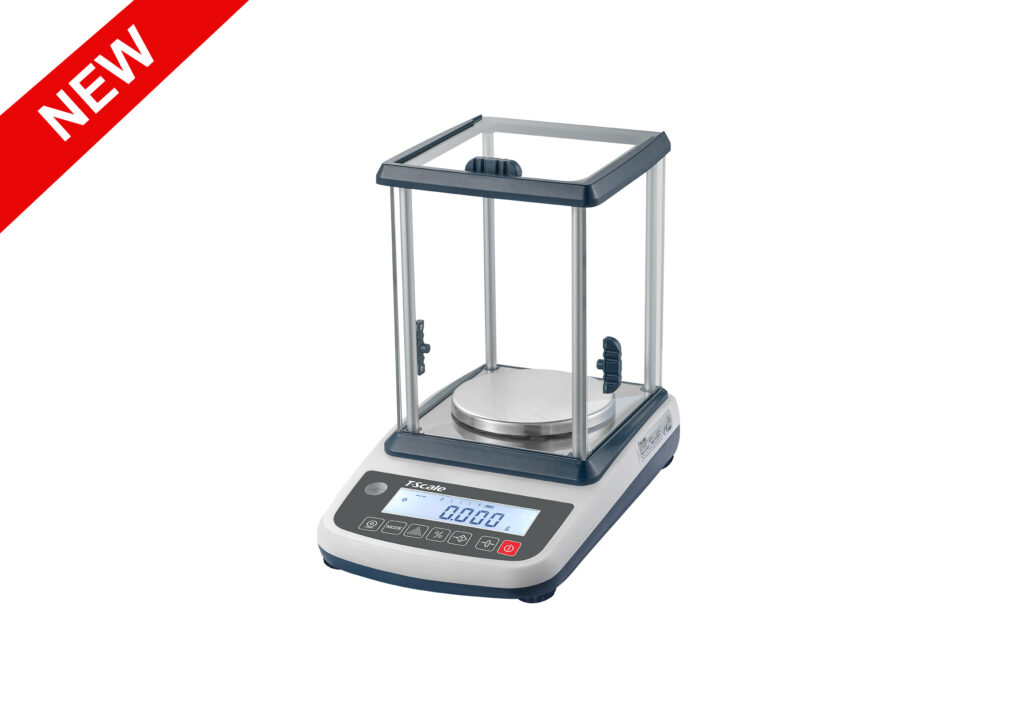

EHB Plus Precision Balance

Key Features:

✅ High resolution, upgrade up to 1/600,000
The EHB series combines the latest weighing chip with new developed software offering a competitive performance weighing, internal resolution is up to 4 million counts, external resolution is up to 600,000 divisions.
✅ Powerful Back Office Management Software
The management software can display the weight in real time, and can be used as a remote device to perform ZERO and TARE operation. It provides users to manage the PLU, user and customer information, etc. Transferring the weighing data from scales through the method of manual, automatic or time interval.
✅ Higher Cost Performance
We break the technical bottleneck in traditional analog load cell and offer the advantage of comprehensive linearity and temperature compensation, which provide users competitive performance at an economical price.
✅ Multiple Use For a Variety of Applications
EHB series offering high accuracy and repeatability for applications in laboratory, industrial and education settings.

📊 Technical Data

Item	Specification
Model	EHB Plus II-300 / 600 / 1500 / 3000 / 6000 / III-600 / III-6000
Capacity	300g, 600g, 1500g, 3000g, 6000g
Readability	0.001g to 0.02g depending on model
Max. Divisions	300,000d / 600,000d
Pan Size	Φ120mm / 180x190mm
Wind Shield	YES / NO
Power Supply	Input: 100~240VAC 50~60Hz \| Output: DC 12V 500mA
Battery	6V 1.2Ah rechargeable battery
Display	16.5mm digit LCD display with white LED backlight
Interface	DB9 RS232 port
Housing	ABS plastic housing; Stainless steel pan
Keyboard	7 membrane keys
Units	g/ct/lb/oz/d/gn/ozt/dwt/mom/tl.t/tl.h/tj/t/bt/n
Applications	Basic Weighing, Parts Counting, Percent Weighing, Accumulation
Option	Bluetooth 5.0/USB 2.0 (Type B)/Under hook
Net Weight	1.8kg to 2.8kg depending on model
Gross Weight	2.6kg to 3.7kg depending on model
Dimensions (WxDxH)	210 x 315 x 90/309mm
Operating Conditions	Temperature: 10°C~35°C, Humidity: < 85% R.H.

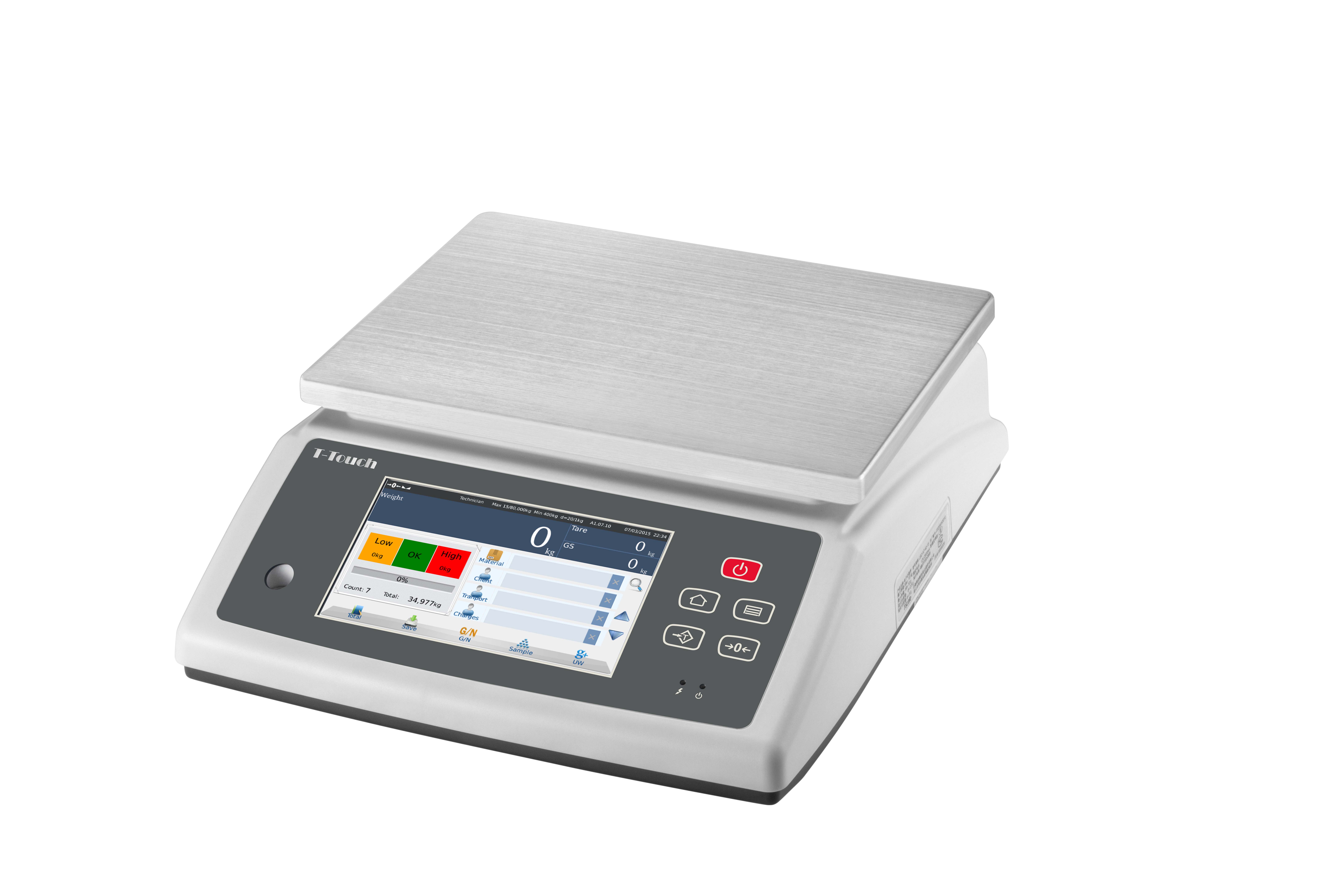

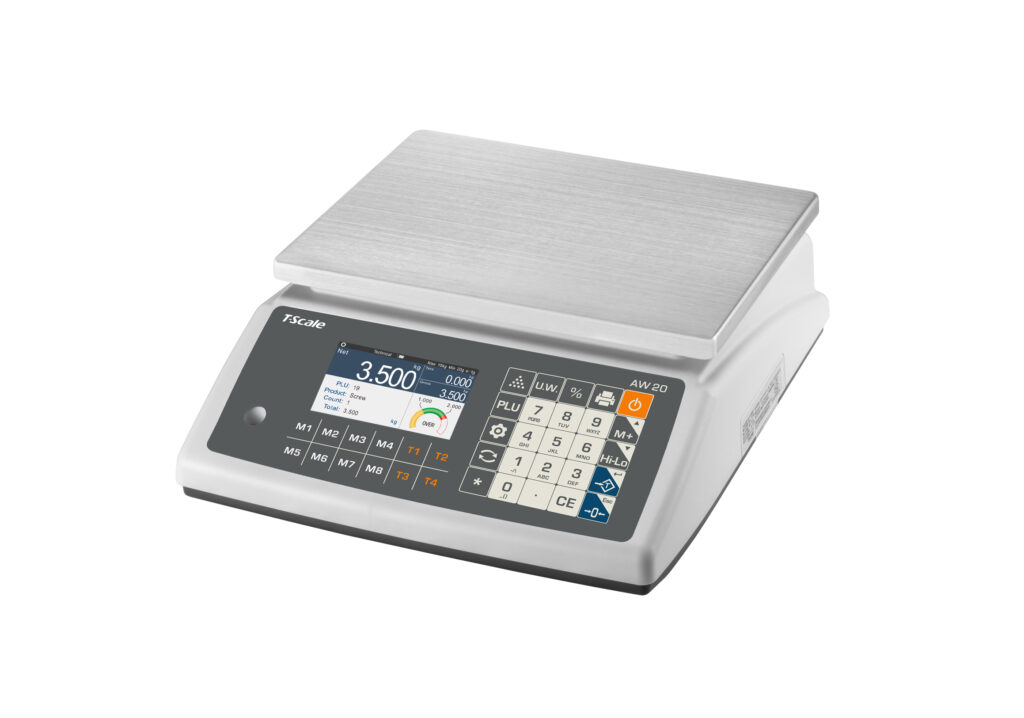

AW Counting Scales

Key Features:

✅ 4.3-inch color display with graphic interface
✅ The Maximum storage 999 PLU, quickly called by scanning
✅ Support multi-language
✅ Multi-user permission management
✅ Standard RJ45 network communication, data can be updated/sent via Ethernet
✅ Standard USB storage, import/export data via U disk
✅ Standard RS232 interface to connect PC or printer
✅ Background management software: product management, customized print format, report management, online update, and other functions

Accessories:

✅ Bluetooth 5.0 transfer data to PC or Bluetooth-configured device
✅ Analog output (0~10V or 4~20mA optional)
✅ Dual scales interface (only available in non-approval model)
✅ Label printer
✅ Ticket printer

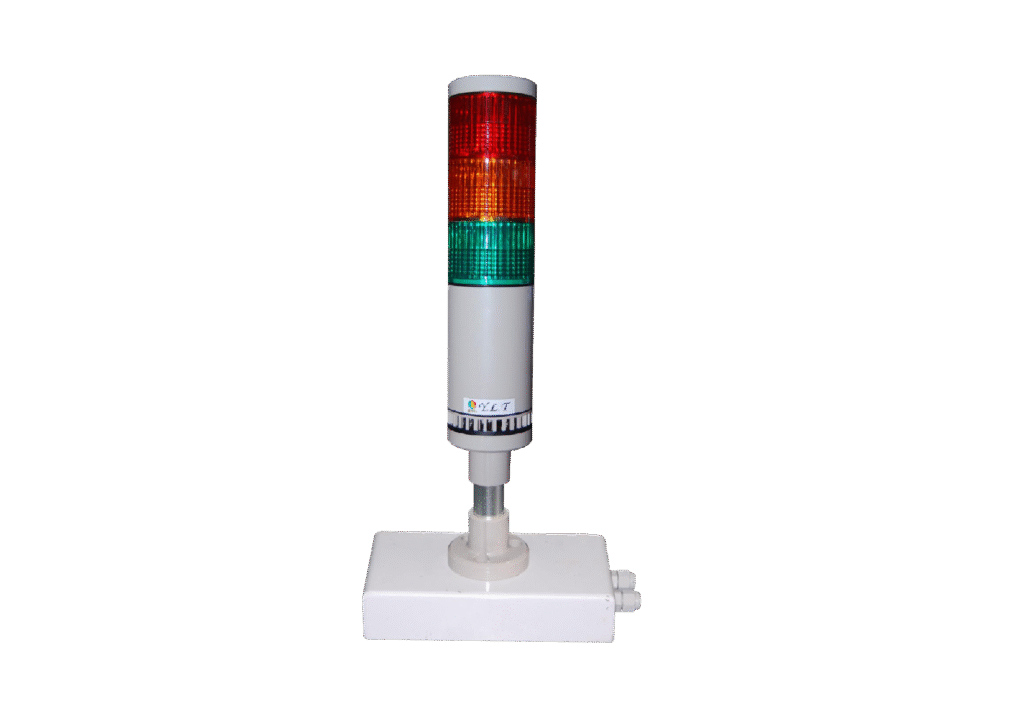

✅ 3 color light tower
✅ Scanner
✅ Lithium battery (7.4V/5200mAh)

📊 Technical Data

Specification	Details
Display	4.3 inch color LCD display, resolution 480×272 px
Power	AC adapter (100~240V AC/12V 2500mA), rechargeable (lithium battery 7.4V/5200mAh) (option)
Memory	999 PLU and 30,000 weighing data
Pan Size	230×300 mm
Operating Temperature	-10°C to +40°C
Interface	RS232x1, USB2.0 x1, RJ45x1
Keyboard	37 membrane keys

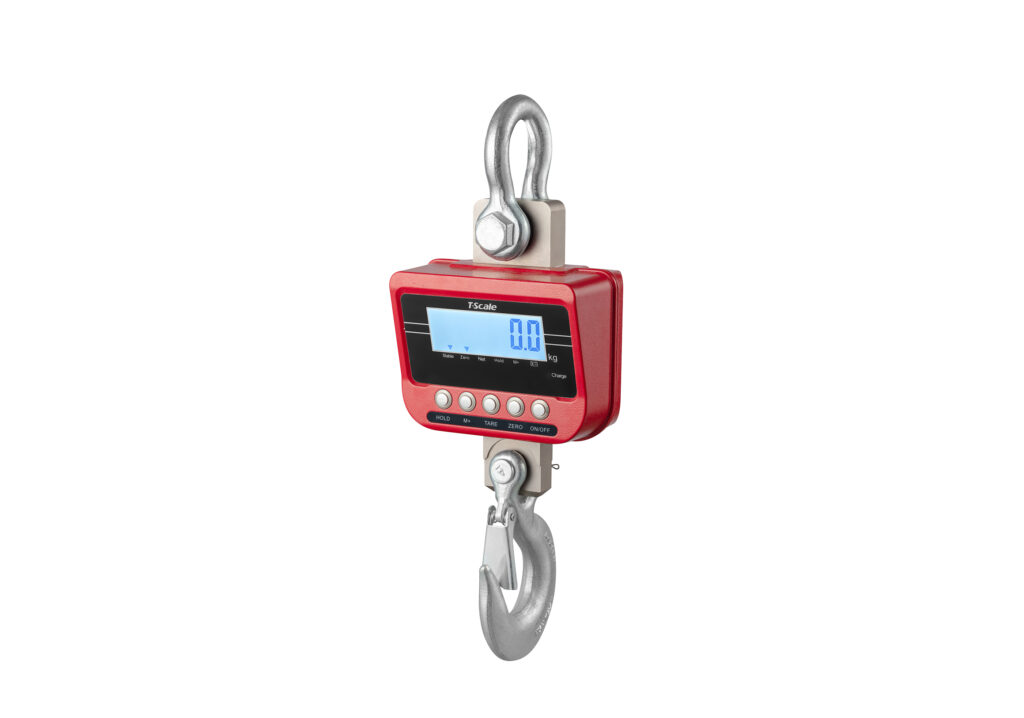

T-NET Crane Scales

Key Features:

✅ Meet the requirements of the standard EN 13155 (Non-fixed load lifting attachments / Breakage resistance) and EN 61010-1 (Electrical safety)
✅ Because of its stable construction and robust design, it is ideal for continuous use in industrial environment
✅ High mobility: rechargeable battery operation, compact, lightweight construction, it is suitable for the use in several locations (production, warehouse, dispatch department.)
✅ Easy to read: big LCD display, digits high 30 mm, with white color LED backlight
✅ Function include zero, tare, accumulation, hold (EC type approved model don’t have hold and accumulation function)
✅ Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically “frozen” until the Hold key is pressed (EC type approved model don’t have this function)
✅ Safety: Solid shackles, non-revolving, Hook with safety catch, revolving, aluminium die cast housing IP65 waterproof, outdoor use with peace of mind
✅ Mass production unit is IP65 waterproof
✅ Remote controller, operation distance up to 30 m. All functions can be selected (excl. ON/OFF)

Accessories:

✅ Bluetooth interface, send data to computer or printer or mobile device
✅ Rear display

📊 Technical Data

Specification	Details
Display	LCD display, digit height 30 mm, bright backlight for easy reading of weighing results, even in poor lighting conditions
Power	Rechargeable Li battery pack internal, operating time up to 70 h, battery pack accessible from the outside, which means it is easy to replace
Remote Controller	Dry battery cell, 12 V 23A
Operating Temperature	-10 °C to +40 °C
Mass Production Unit	IP65

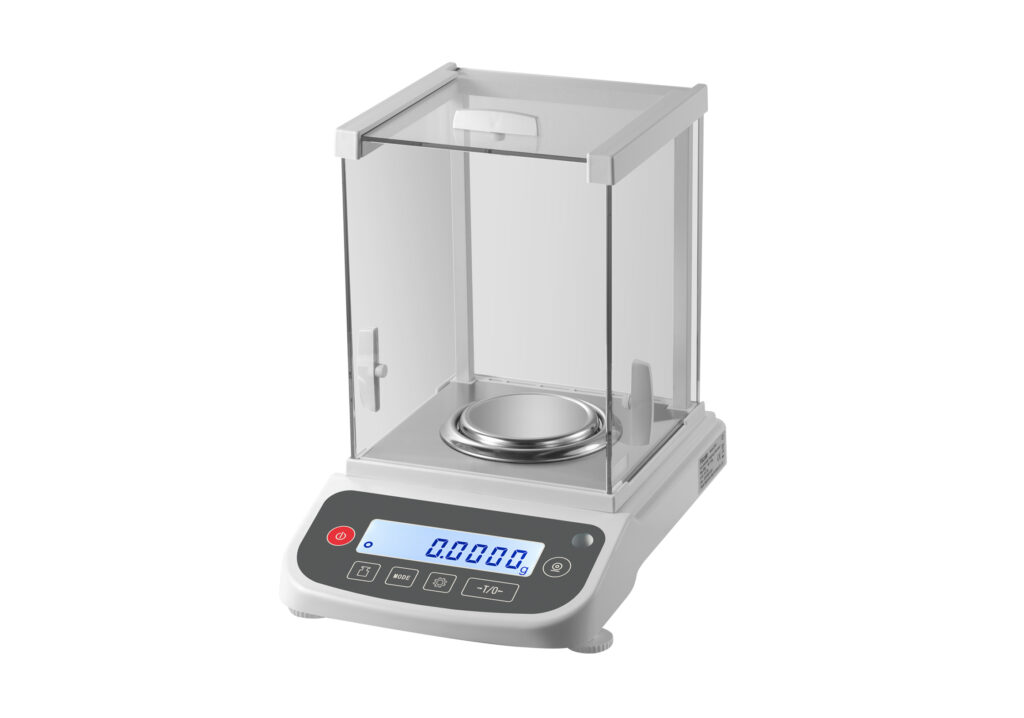

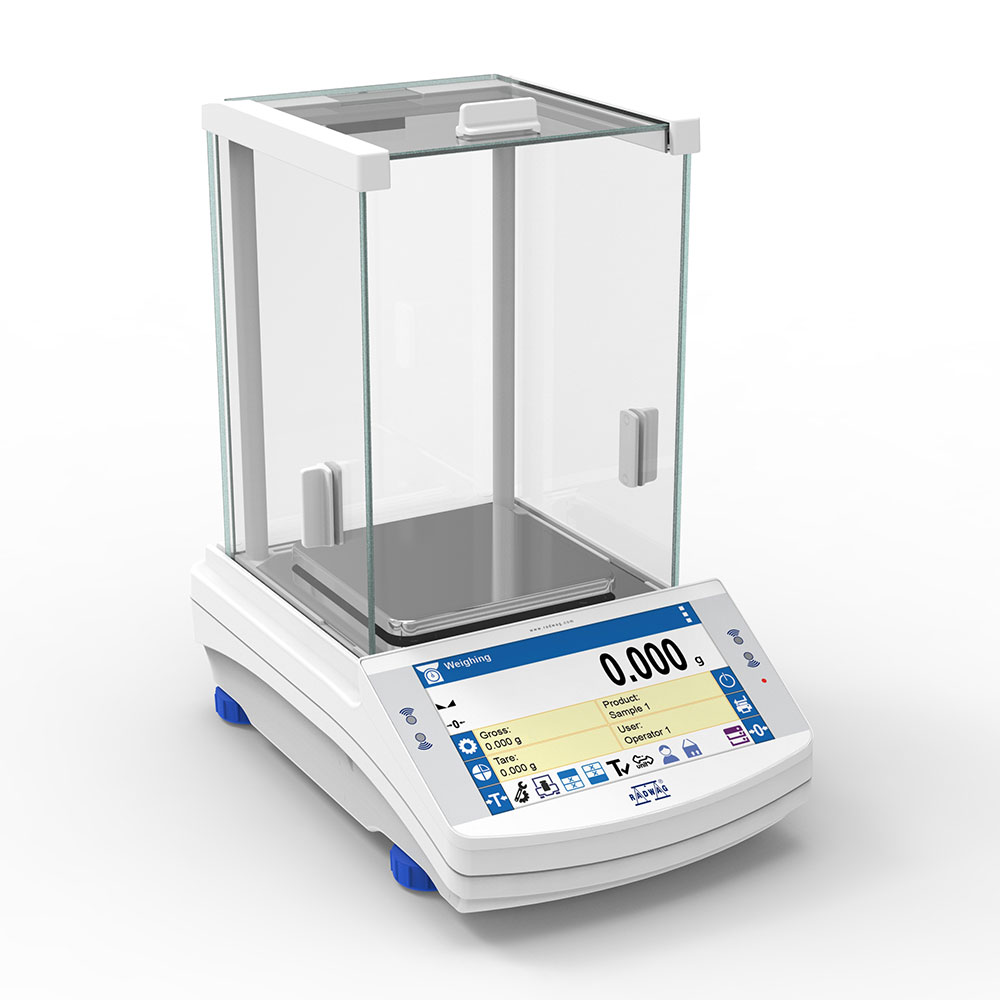

TB - E Series Precision Balance

Key Features:

✅ High resolution, upgrade up to 1/600,000
✅ Powerful back office management software for real-time data management
✅ Higher cost performance with advanced load cell technology
✅ Multiple uses across laboratory, industrial, and educational settings

📊 Technical Data

Item	Specification
Model	TB-E-300H, TB-E-600, TB-E-1000, TB-E-1500, TB-E-3000H, TB-E-600H, TB-E-6000H
Capacity	300g / 600g / 1000g / 1500g / 3000g / 600g / 6000g
Readability	0.001g / 0.01g
Max. Divisions	Up to 300,000d / 600,000d
Pan Size	Φ120mm / 180×190mm
Wind Shield	Yes (except TB-E-6000H)
Power Supply	Input: 100–240V AC 50–60Hz, Output: DC 12V 500mA
Battery	6V 1.2Ah rechargeable battery
Display	16.5mm digit LCD display with white LED backlight
Interface	DB9 RS232 port
Housing	ABS Plastic Housing; Stainless Steel Pan; Stainless Steel Pan Support Cover; Glass Wind Shield
Keyboard	7 membrane keys
Units	g / ct / lb / oz / d / gn / ozt / dwt / mom / t / t.t / h / tj / t / bt / n
Applications	Basic Weighing, Parts Counting, Percent Weighing, Accumulation
Option	Bluetooth 5.0 / USB 2.0 (Type B)
Net Weight	2.8kg / 1.8kg / 2.8kg / 1.8kg
Gross Weight	3.7kg / 2.6kg / 3.7kg / 2.6kg
Dimensions (W×D×H)	210 × 315 × 309mm / 210 × 315 × 90mm
Operating Conditions	Temperature: 10°C~35°C, Humidity: <85% R.H.

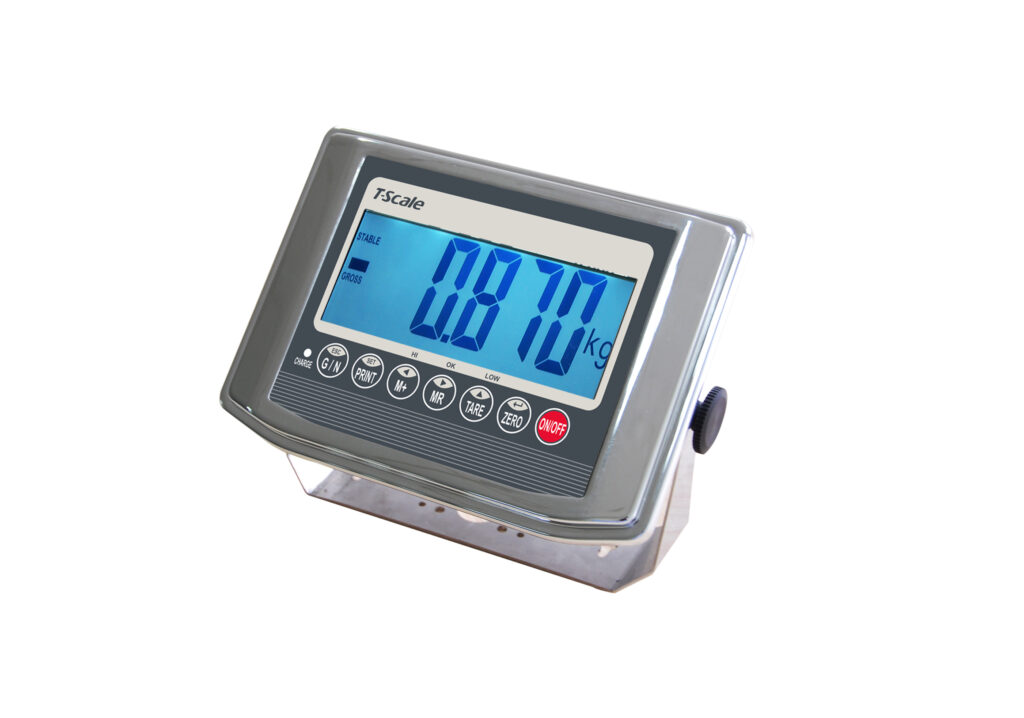

S10 -7- W NSW Weighing Indicator

Key Features:

✅ Stainless steel display device (only NSW) and superior display size
✅ Flexible positioning: e.g. free-standing or mounted to the wall
✅ Full function: unit change, accumulation, checkweighing, simply counting, Gross/Net shift
✅ Tolerance range check: visual & audible signal helps with portioning, dispensing, grading
✅ Hold function: stable weight averaging during unstable weighing
✅ RS-232 interface: can connect to PC or printer

Accessories:

✅ Connection parts to install on pole for platform scale
✅ RS-232 cable for PC
✅ RS-232 cable for printer
✅ Mini printer
✅ Label printer
✅ Bluetooth data interface, data transfer to PC or tablets
✅ Analogue output (0–10V or 4–20mA selectable)
✅ 3 color light tower

📊 Technical Data

Specification	Details
Display	LCD display, digit height 52 mm, with white color LED backlight
Power	AC adapter (12V/500mA), rechargeable battery (lead acid battery 6V/4Ah), operation time 70 hours
Operating Temperature	-10°C to +40°C

ELW LED Weighing Indicator

Key Features:

✅ Programmable to meet your needs
✅ OIML approval from Delta (approval no. DK0199.165)
✅ Rechargeable battery operation, up to 40 hours of continuous use
✅ Optional RS-232 interface to connect printer or computer

Applications:

Weighing Units Conversion
Accumulation
Auto Power Off

📊 General Specifications

Specification	Details
Display	1.2″ LED display
Keyboard	5 keys (Mechanical switch)
Housing	ABS plastic
Max. Divisions	6,000e; 30,000d
Load Cell Excitation Voltage	5V/150mA
ADC Update	≤ 1/10 second
Operate Temp	-10°C ~ +40°C
Power	AC adapter (12V/500mA), rechargeable battery (6V/4Ah)
Gross Weight	2.5kg

AW-7 Intelligent Weighing & Piece Counting Scales

Key Features:

✅ High Resolution
✅ Large Stainless Steel Pan and ABS Housing with Dust Cover
✅ Up to 70 hours of battery life (without backlight)

Applications:

Tare Function
Piece Check Counting
Weighing Units Conversion
Piece Checking Alarm (User can set hi/low limits for weighing)

📊 General Specifications

Specification	Details
Display	20mm digit LCD display with white LED backlight
Capacities	3kg ~ 30kg
Pan Size	230 x 300mm
Keyboard	20 keys (Membrane Keyboard)
Housing	ABS Plastic
Max. Divisions	3,000e; 2 x 3,000e; 30,000d; 60,000d
ADC Update	≤ 1/10 second
Operating Temperature	-10°C ~ +40°C
Power	AC Adapter (12V/500mA), internal rechargeable battery (6V/4Ah)
Gross Weight	5kg

AHW Table Top Weighing Scale

Key Features:

✅ Stainless steel pan and ABS plastic cover
✅ Adjustable feet for better stability
✅ Check Weighing Alarm (Set hi/low limit for weighing)
✅ Battery provides up to 70 hours of continuous use (without backlight)

Applications:

Tare
Check Weighing
Weighing Units Conversion

📊 General Specifications

Specification	Details
Display	24mm digit LCD display, with white LED backlight
Capacities	3kg ~ 30kg
Platform Size	230 x 300mm
Keyboard	4 keys (Membrane keyboard)
Housing	ABS Plastic
Max. Divisions	Up to 60,000d
ADC	Sigma Delta
ADC Update	≤ 1/10 second
Operating Temperature	0°C ~ +40°C
Power	AC Adapter (12V/500mA), Internal Rechargeable Battery (6V/4Ah)
Gross Weight	5kg

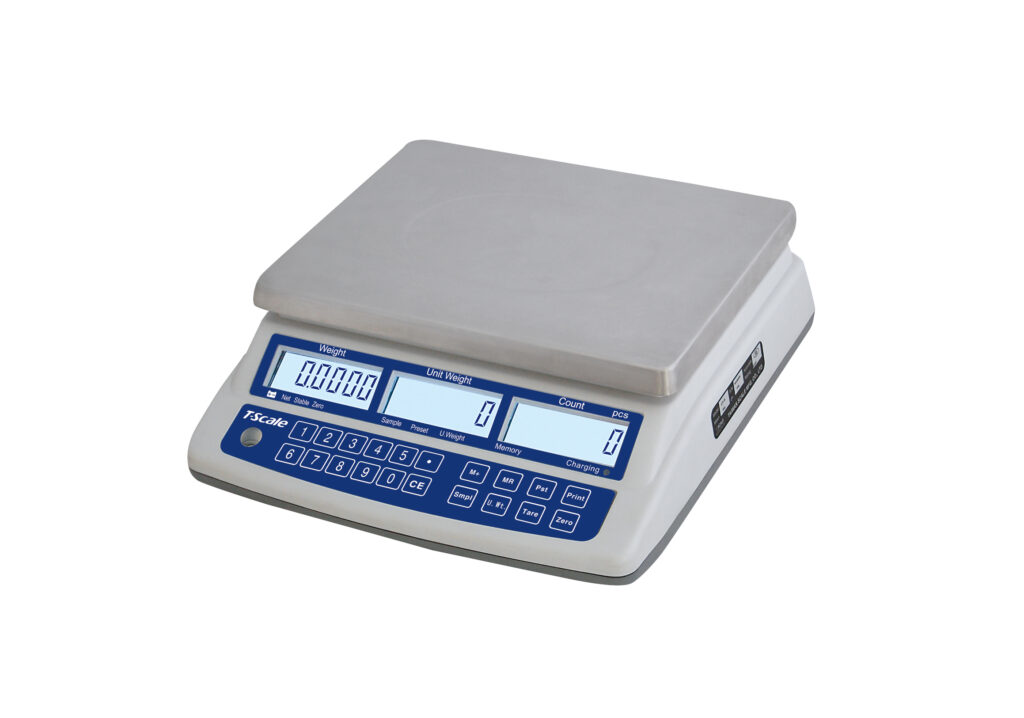

AHC Counting Scales

Key Features:

✅ High Resolution
✅ Large Stainless Steel Pan and ABS Housing with Dust Cover
✅ Up to 70 hours of battery life (without backlight)

Applications:

Tare Function
Piece Check Counting
Weighing Units Conversion
Piece Checking Alarm (User can set hi/low limits for weighing)

📊 General Specifications

Specification	Details
Display	20mm digit LCD display with white LED backlight
Capacities	3kg ~ 30kg
Pan Size	230 x 300mm
Keyboard	20 keys (Membrane Keyboard)
Housing	ABS Plastic
Max. Divisions	3,000e; 2 × 3,000e; 30,000d; 60,000d
ADC Update	≤ 1/10 second
Operating Temperature	-10°C ~ +40°C
Power	AC Adapter (12V/500mA), internal rechargeable battery (6V/4Ah)
Gross Weight	5kg
