Online Checkweighers
Checkweighers : CW-CW3 IN
![ProEXR File Description
=Attributes=
cameraAperture (float): 40.4576
cameraFNumber (float): 8
cameraFarClip (float): 1e+030
cameraFarRange (float): 1000
cameraFocalLength (float): 90
cameraFov (float): 28.6638
cameraNearClip (float): 0
cameraNearRange (float): 0
cameraProjection (int): 0
cameraTargetDistance (float): 5753.62
cameraTransform (m44f): [{0.707107, -0.702292, -0.0823749, -4400}, {-0.707107, -0.702292, -0.0823749, -4400}, {0, 0.116496, -0.993191, 1650}, {0, 0, 0, 1}]
channels (chlist)
compression (compression): Zip
dataWindow (box2i): [0, 0, 5999, 5999]
displayWindow (box2i): [0, 0, 5999, 5999]
lineOrder (lineOrder): Increasing Y
name (string): ""
pixelAspectRatio (float): 1
screenWindowCenter (v2f): [0, 0]
screenWindowWidth (float): 1
type (string): "scanlineimage"
vrayInfo/camera (string): "Cam_SRB"
vrayInfo/computername (string): "gandalf5"
vrayInfo/cpu (string): "INTEL/OctaModel:12,Family:6,Stepping:3,Cache:0"
vrayInfo/date (string): "31.01.2018"
vrayInfo/filename (string): "HC-M-WD_02.max"
vrayInfo/frame (string): "6619236"
vrayInfo/h (string): "111"
vrayInfo/mhz (string): "0MHz"
vrayInfo/noiseThreshold (string): "0.001000"
vrayInfo/numPasses (string): "0"
vrayInfo/numSubdivs (string): "0.00"
vrayInfo/os (string): "Win8.1"
vrayInfo/primitives (string): "0"
vrayInfo/ram (string): "16080MB"
vrayInfo/rendertime (string): " 0h 0m 0.0s"
vrayInfo/time (string): "14:14:16"
vrayInfo/vmem (string): "134217728MB"
vrayInfo/vraycore (string): "3.60.03"
vrayInfo/vrayversion (string): "Internal V-Ray version Adv 3.60.03"
vrayInfo/w (string): "109"
=Channels=
A (half)
B (half)
G (half)
MultiMatteElement1.B (half)
MultiMatteElement1.G (half)
MultiMatteElement1.R (half)
MultiMatteElement2.B (half)
MultiMatteElement2.G (half)
MultiMatteElement2.R (half)
R (half)
VRayExtraTex_Map #1.B (half)
VRayExtraTex_Map #1.G (half)
VRayExtraTex_Map #1.R (half)
VRayObjectSelect.B (half)
VRayObjectSelect.G (half)
VRayObjectSelect.R (half)
VRayObjectSelect_alpha (half)
VRayObject](https://rigelindia.in/wp-content/uploads/2025/04/CW-M-WD_01-scaled-1-223x300.jpg)
![ProEXR File Description
=Attributes=
cameraAperture (float): 40.4576
cameraFNumber (float): 8
cameraFarClip (float): 1e+030
cameraFarRange (float): 1000
cameraFocalLength (float): 60
cameraFov (float): 27.7811
cameraNearClip (float): 0
cameraNearRange (float): 0
cameraProjection (int): 0
cameraTargetDistance (float): 5753.62
cameraTransform (m44f): [{0.707107, 0.702292, 0.0823749, 4741.16}, {0.707107, -0.702292, -0.0823749, -4468.86}, {3.91155e-008, 0.116496, -0.993191, 1650}, {0, 0, 0, 1}]
channels (chlist)
compression (compression): Zip
dataWindow (box2i): [0, 0, 5999, 5999]
displayWindow (box2i): [0, 0, 5999, 5999]
lineOrder (lineOrder): Increasing Y
name (string): ""
pixelAspectRatio (float): 1
screenWindowCenter (v2f): [0, 0]
screenWindowWidth (float): 1
type (string): "scanlineimage"
=Channels=
A (half)
B (half)
G (half)
MultiMatteElement1.B (half)
MultiMatteElement1.G (half)
MultiMatteElement1.R (half)
MultiMatteElement2.B (half)
MultiMatteElement2.G (half)
MultiMatteElement2.R (half)
R (half)
VRayExtraTex_Map #1.B (half)
VRayExtraTex_Map #1.G (half)
VRayExtraTex_Map #1.R (half)
VRayObjectSelect.B (half)
VRayObjectSelect.G (half)
VRayObjectSelect.R (half)
VRayObjectSelect_alpha (half)
VRayObjectSelect_filter.B (half)
VRayObjectSelect_filter.G (half)
VRayObjectSelect_filter.R (half)
VRayReflection.B (half)
VRayReflection.G (half)
VRayReflection.R (half)](https://rigelindia.in/wp-content/uploads/2025/04/CW-M-SL_03-scaled-1-259x300.jpg)

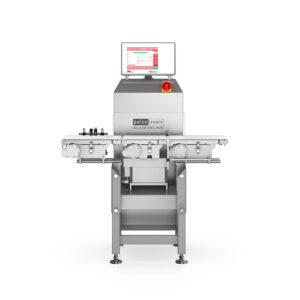

Smart Design, Powerful Performance
The checkweigher of the device series CW provide quality assurance at the highest le- vel. The wide range
of devices and the full range of optional accessories allow flexible use in all areas. The robust and
maintenance-free strain gauges load cell, combined with wear-free brushless DC motors, allows continuous
operation without annoying downtime or disruption. All checkweigher are also available with EC type
approval. That means the checkweigher are especially interesting for the field of food industry. Individual
products can be checked in terms of their weight after prepackaged regulations and underweight packs are
discharged. Also, an average control of production batches is possible. This control and the optional
averaging recirculation reduce Giveaway, and this led to a sustainable cost reduction.
π Key System Highlights
β
Best Digital Evaluation Weighing Technology
β
Stainless steel frame
β
Stainless steel cabinet with integrated control
system
β
Three belts (infeed, weighing, outfeed conveyor);
Lightweight construction
β
Maintance free DC Motor & drive
β
One sorter attachment (air blast)
β
User friendly interface via 10.4β colour TFT Display
with Touchscreen
β
Memory of 100 different product parameters & 10000
messages
β
Line synchronization with potential free
switching contacts/ binary signals
β
Extensive statistical functions/ histograms, Multilevel Users, abiding CFR 21 Part 11 compliance requirements
π― Performance Advantages
β
High throughput rate up to 150 pcs/min
β
Precise and reliable weighing results to
increase plant efficiency
β
Very good price performance ratio
β
Requirements bas
Β
| Frame Material | Stainless Steel V2A / AISI 304 |
| Usage Conditions | IP54 / optionally IP65 |
| Operating Temp Range | +5Β°C to +40Β°C |
| Display & Interface | 10.4″ Touch TFT Display |
| Languages Supported | English (Others on request) |
| Communication Ports | Ethernet, RS232, RS422, RS485 (Optional) |
| Max Throughput | 150 pcs/min |
| Digital Inputs/Outputs | 8Γ Input / 12Γ Output |
| Stored Product Presets | Up to 100 PPS |
| Drive Motor | DC Brushless Technology |
| Noise Emission | < 70dB(A) |
| Rated Voltage | L1/N/PE; 100β240V AC |
| Rated Frequency | 50 Hz |
| Power Consumption | Approx. 0.8 kVA |
| Compressed Air (Optional) | 8 bar / 10Nl/min [ISO 8573-1] (5:3:3) |
| Max Connected Motors | 3 (1 extendible) |
| Model | GWR (g) | Dead Load (g) | e (g) | d (g) | Std. Deviation |
|---|---|---|---|---|---|
| CW 3 600 | 600 g | 8,500 g | β₯ 0.1 g | β₯ 0.05 g | from 100 mg |
| CW 3 1500 | 1500 g | 8,500 g | β₯ 0.2 g | β₯ 0.1 g | from 150 mg |
| CW 3 3000 | 3000 g | 8,500 g | β₯ 0.5 g | β₯ 0.1 g | from 200 mg |
| Length β / Width β | 150 mm | 200 mm | 300 mm |
|---|---|---|---|
| 200 mm | x | – | – |
| 300 mm | x | x | – |
| 400 mm | x | x | x |
| 500 mm | x | x | x |

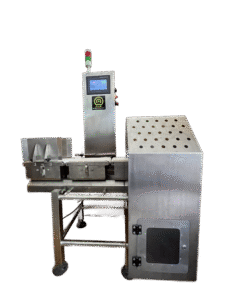

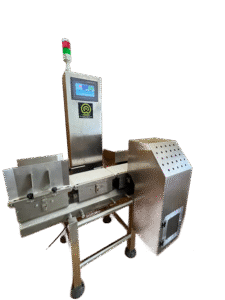

Dynamic Checkweigher
A checkweigher is an automatic machine for checking the weight of packaged commodities.Β Checkweighers are normally used on line in the production floor and its main purpose to ensure that the weight of a pack is within specified limits. Any packs that are outside the tolerance are taken out of line automatically. This is not only required by law, but also beneficial for manufacturers to help them reach greater efficiency at lower costs.
The right application of weight control techniques can allow the food production and packaging manufacturer to virtually eliminate consumer complaints about underweight packages. Well-crafted and maintained checkweigher systems can also help the manufacturer significantly reduce costs related to overweight packages by decreasing the average fill weight through improved accuracy.Β

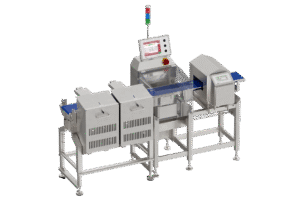

Checkweighers can be integrated with metal detectors, x-ray machines, bar-code scanners etc. An industrial motion checkweigher can sort products from a fraction of a gram to many, many kilograms.Β
Various type of rejectors are available as per requirement like Pusher, Arm, Stop Belt, Flap, Drop Belt, Up Belt etc.
